■Main control board slot ：1；

■Business board slot： 3（ support mixed insertion）；

■Power Module slot：2（support hot standby）；

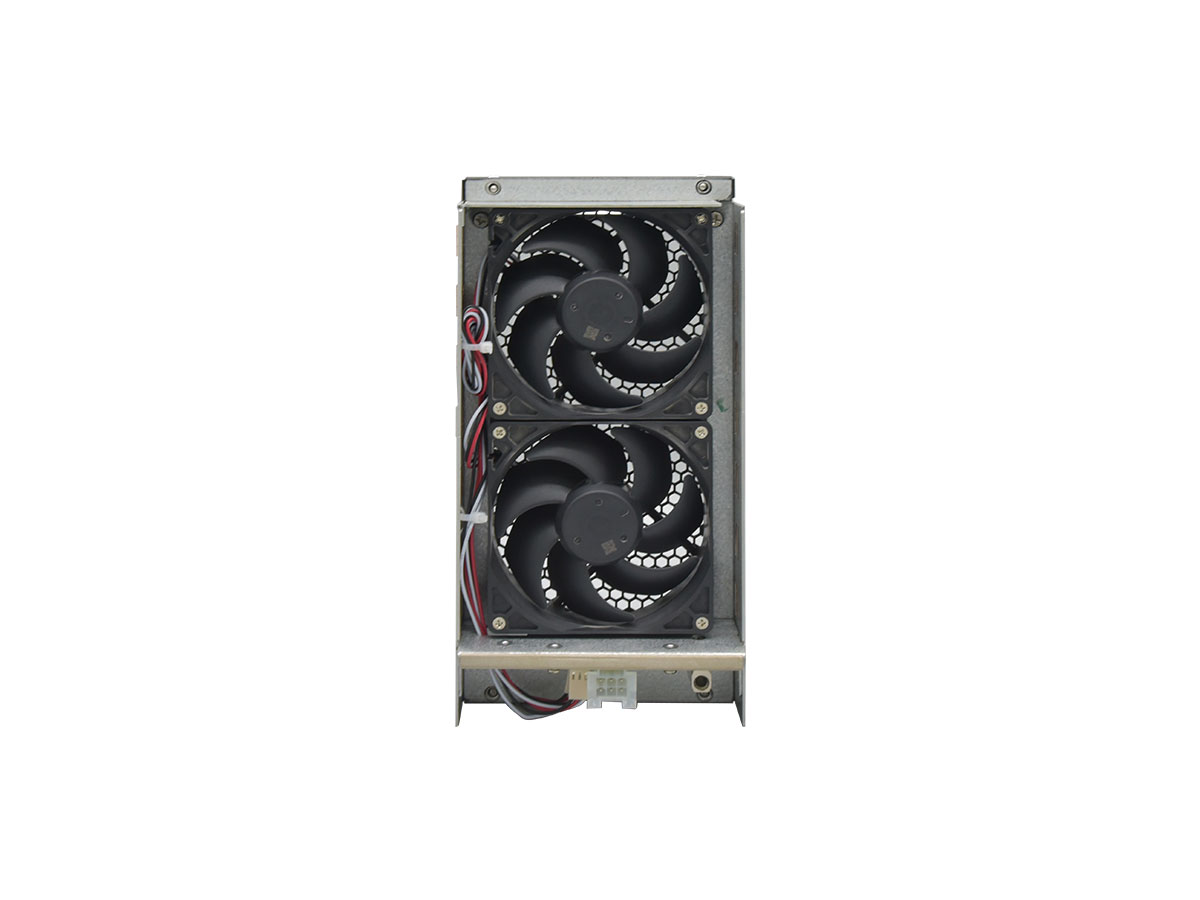

■Fan module：1（ 2 built-in fans）；

■Ports：All ports support line-speed forwarding；

■Case：Supports 19-inch standard rack installation

■Environment：

*Working temperature: 0°C~40°C

*Working humidity: 10%~90% non-condensing

*Storage temperature: -20°C~70°C

*Storage humidity: 5%~95% non-condensing

■Switching Capacity： 15.36Tbps (Max) with 3 line cards

■Packet Forwarding Rate ：2880Mpps (Max) with 3 line cards

■Physical Specifications Size(L*W*H):436*280*166mm (4U)
