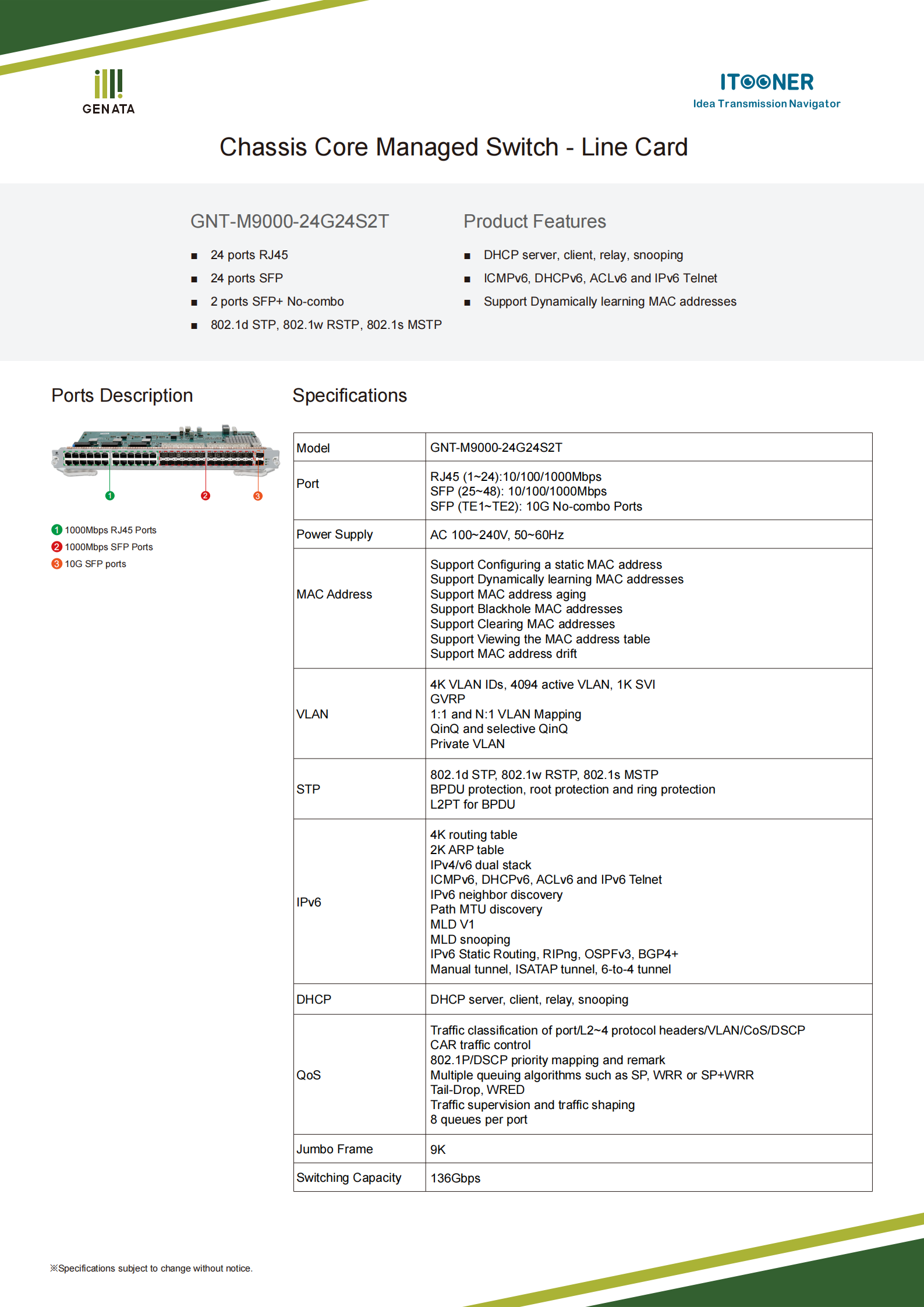

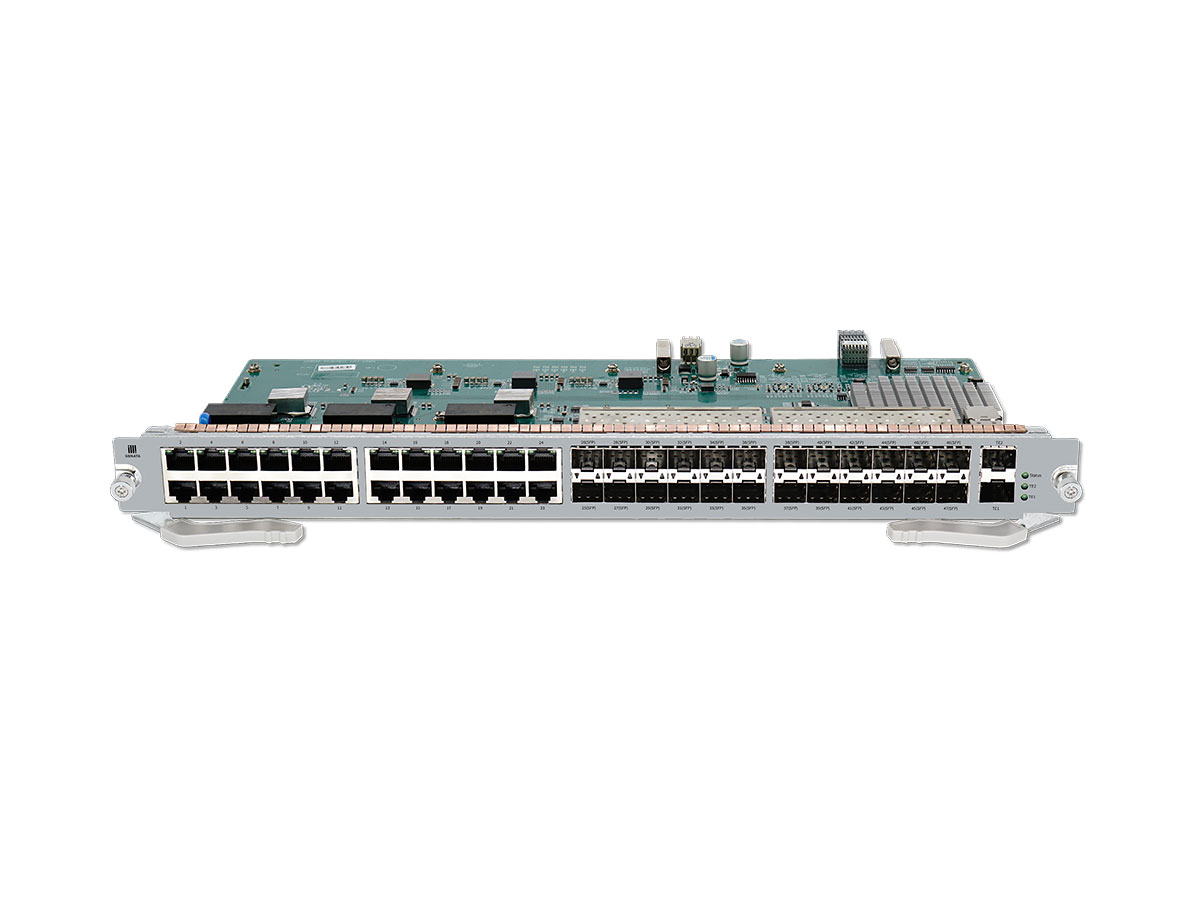

Chassis Core Managed Switch - Line Card

■RJ45 Ports: 1~24 Ports (10/100/1000Mbps)；

■SFP Ports: 25~48 Ports (1000Mbps);

■SFP+ Ports: SFP+(49~50),10G No-combo Ports;

■Power Input:AC 100~240V, 50-60Hz;

■VLAN:Support 4K VLAN entries, Support GVRP, Support 1:1 and N:1 VLAN mapping, Support basic QinQ and flexible QinQ, Support private VLAN;

■DHCP:DHCP Client, DCHP Relay, DHCP Server;

■STP：Support 8021D (STP), 8021W (RSTP), and 8021S (MSTP), Support BPDU protection, root protection, and loop protection；

■Safety Features：Supports RADIUS and BDTacacs+ authentication, Supports uRPF, Supports hierarchical command line protection；

■OSPF：Plain text/MD5 authentication, route filtering, route redistribution, stub area, NSSA area, route aggregation, virtual link, port cost, management distance；

■RIP：RIPv1/v2, route redistribution, plain text/MD5 authentication, route aggregation, route filtering；

■BGP：MD5 authentication, route filtering, route redistribution, BGP route reflector, BGP autonomous system alliance, BGP MED, BGP Local-preference；

■Jumbo Frame：9K；

■Switching Capacity：136Gbps；

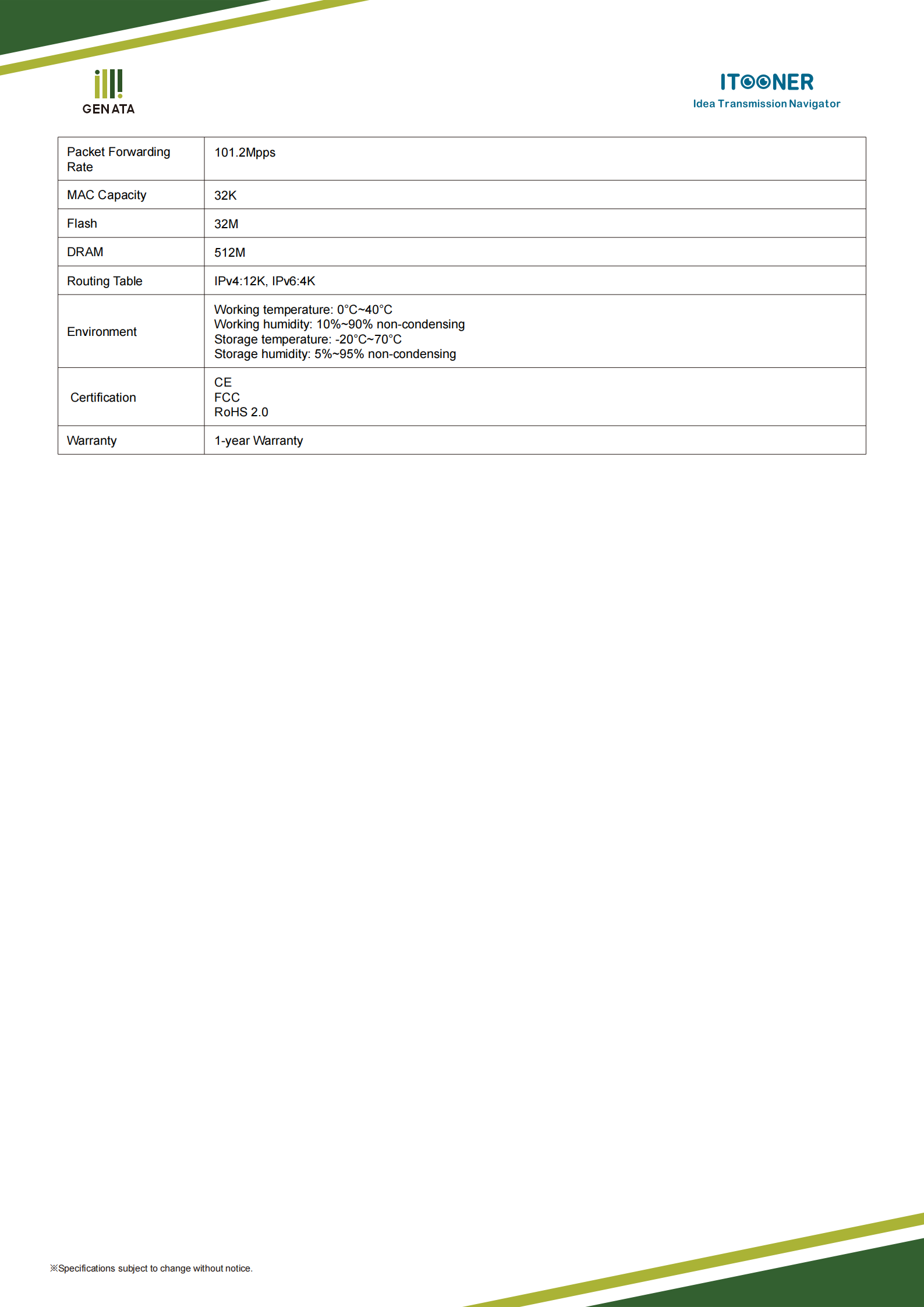

Packet Forwarding Rate：101.2Mpps；

■MAC Capacity：32K

■Flash：32M；

■DRAM：512M；

■Routing Table：IPv4:12K, IPv6:4K；

■Environment：Working temperature: 0°C40°C, Working humidity: 10%-90% noncondensing,

Storage temperature: -20°C-70°C, Storage humidity: 5%-95% non-condensing
