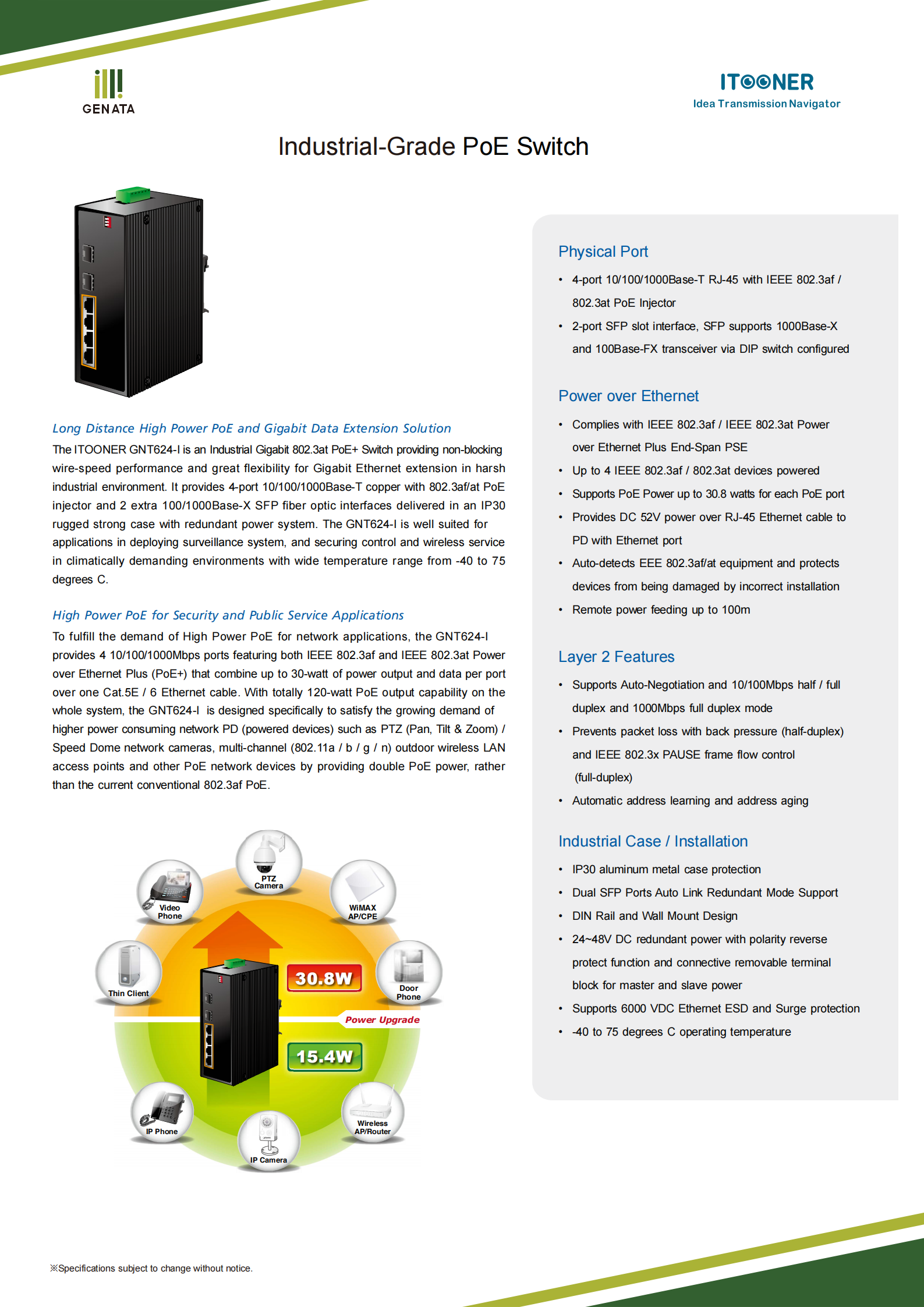

Physical Port

• 4-port 10/100/1000Base-T RJ-45 with IEEE 802.3af /

802.3at PoE Injector

• 2-port SFP slot interface, SFP supports 1000Base-X

and100Base-FX transceiver via DIP switch configured

Power over Ethernet

• Complies with IEEE 802.3af / IEEE 802.3at Power

over Ethernet Plus End-Span PSE

• Up to 4 IEEE 802.3af / 802.3at devices powered

• Supports PoE Power up to 30.8 watts for each PoE port

• Provides DC 52V power over RJ-45 Ethernet cable to

PD with Ethernet port

• Auto-detects EEE 802.3af/at equipment and protects

devices from being damaged by incorrect installation

• Remote power feeding up to 100m
